The Crown remover is a spring-loaded mechanical device to remove the bonded crowns and bridges by an intensive impulse.

• Spring-loaded crown remover with 8 tips and a wrench.
• Special tip for bridge removing
• Impulse strength is controllable
• Eight different designs of tips allow engaging in different places of crown margins.
• It has a special steel string that can be pulled underneath the bridge and engaged in the rectangular tip when an impulse is
  applied to it pulls out the bridge.
• Impulse strength should be lowered for root-treated teeth.
• For permanent removal of crowns by breaking the seal between tooth and crown even after sectioning with a bur.
• The setting of the impulse to a higher level can break the underlying tooth. Be careful.

INDICATIONS :

• Permanently cemented crowns and or bridges
• Temporary cemented provisional or final restorations
• Maryland bridges
• Orthodontic brackets/bands
• Removable appliances/retainers fixed at abutments

• Ergonomic design for improved grip of the instrument
• The bayonet attachment lets you insert your hook or wire-tip in a single hand movement!
• The high frequency of micro-strokes makes it the fastest system in the world: up to 20 movements per second!
• Unique! Non-reloading mechanism: maintains a constant working axis and precise, continuous contact with the porcelain
• Intuitive intensity adjustment ring for the comfort of controlled intensity
• Wide range of inserts to suit all prosthesis configurations
• Automatic Crown Remover: attached through the tip to the crown needing to be removed, transmits an impact force to the crown without striking the object itself.

• Instrument Name: Automatic crown Remover
• Type: Dental Crown Remover
• Category: Prosthodontics
• Material: Stainless Steel
• Disposable / Reusable:Reusable

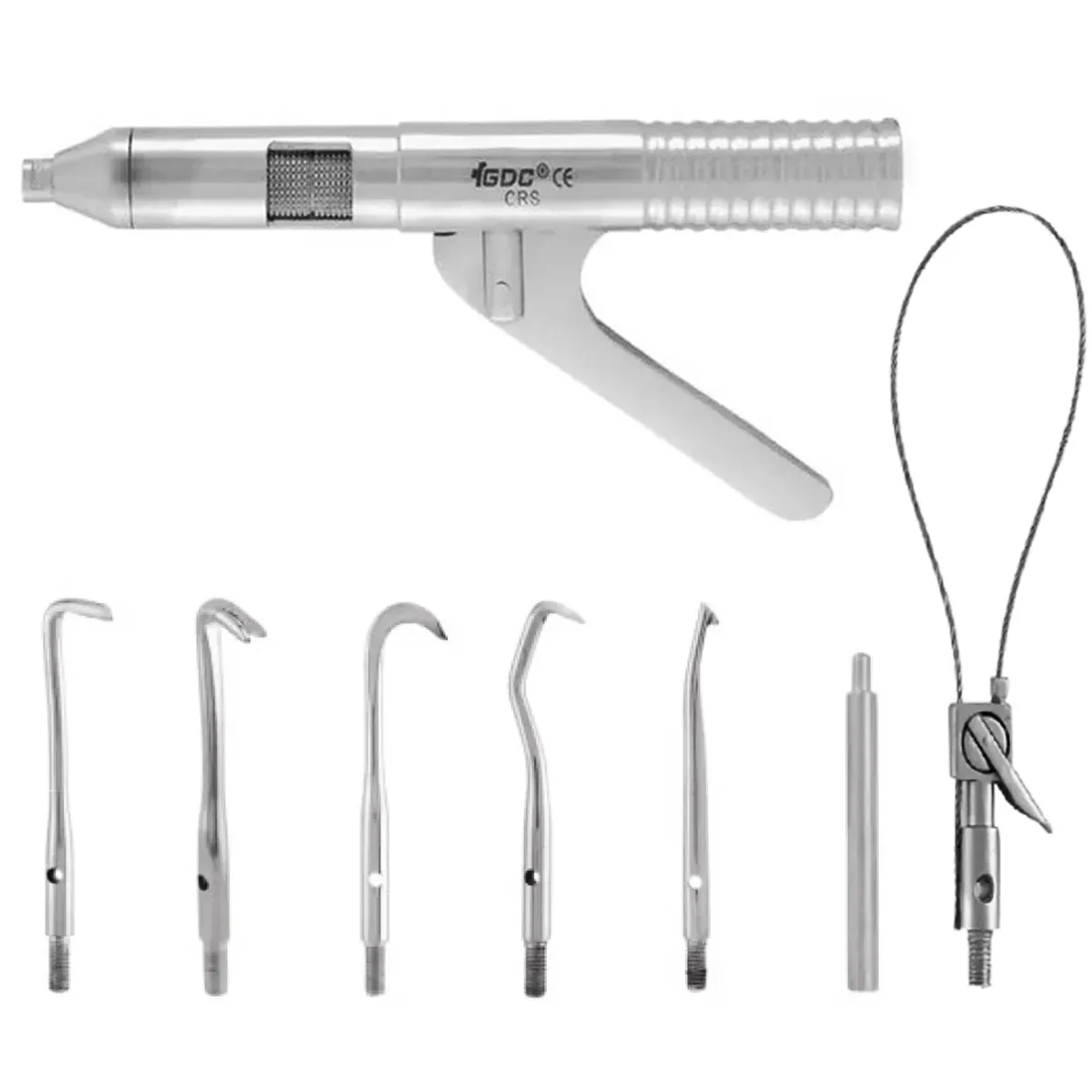

• 1 x Crown & bridge remover Crs
• 1 x Tip Cr1
• 1 x Bifid tip Cr2
• 1 x Sickel tip Cr3
• 1 x Angle tip Cr4
• 1 x Inverted curved tip Cr5
• 1 x Straight tip Cr6
• 1 x Bridge remover Flexi wire set Cr7
• 1 x Bridge remover tip with lock Cr8
• 1 x Tip adjustment key Cr9
• 1 x Open-end adjustment wrench Cr10

1. Select the appropriate tip based on crown or bridge type.
2. Position the tip securely at the crown margin for effective engagement.
3. Adjust impulse strength according to the case; use lower settings for root-treated teeth.
4. If removing a bridge, utilize the special steel string to engage the rectangular tip.
5. Activate the spring-loaded mechanism to apply a controlled impulse and break the seal.
6. Avoid excessive force to prevent damage to the underlying tooth.
7. Clean and sterilize the device and tips after each use following manufacturer guidelines.

• Country Of Origin: India
• Manufacturer: GDC Fine Crafted Dental Pvt. Ltd.

• 6 Months warranty against rust.
